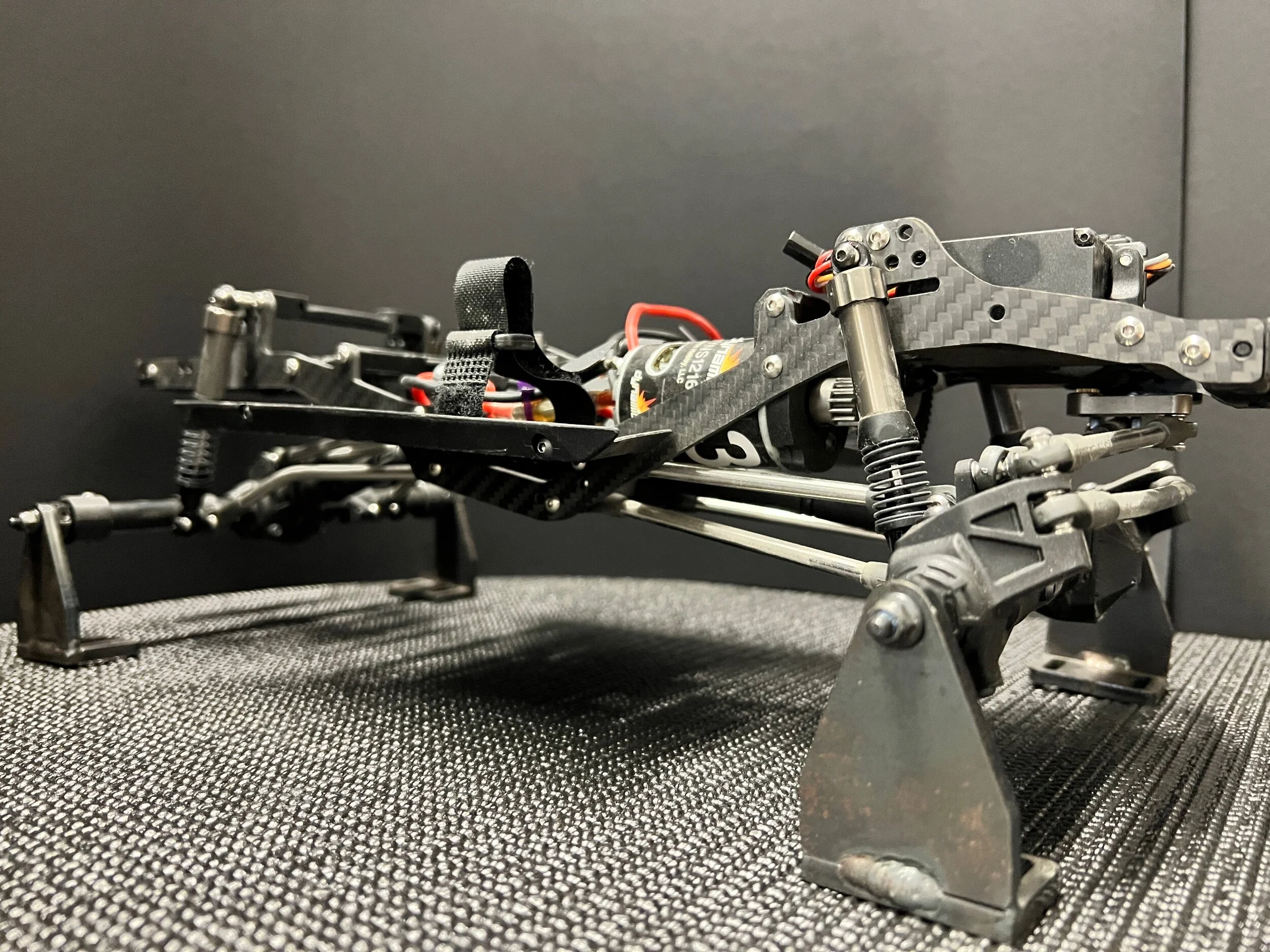

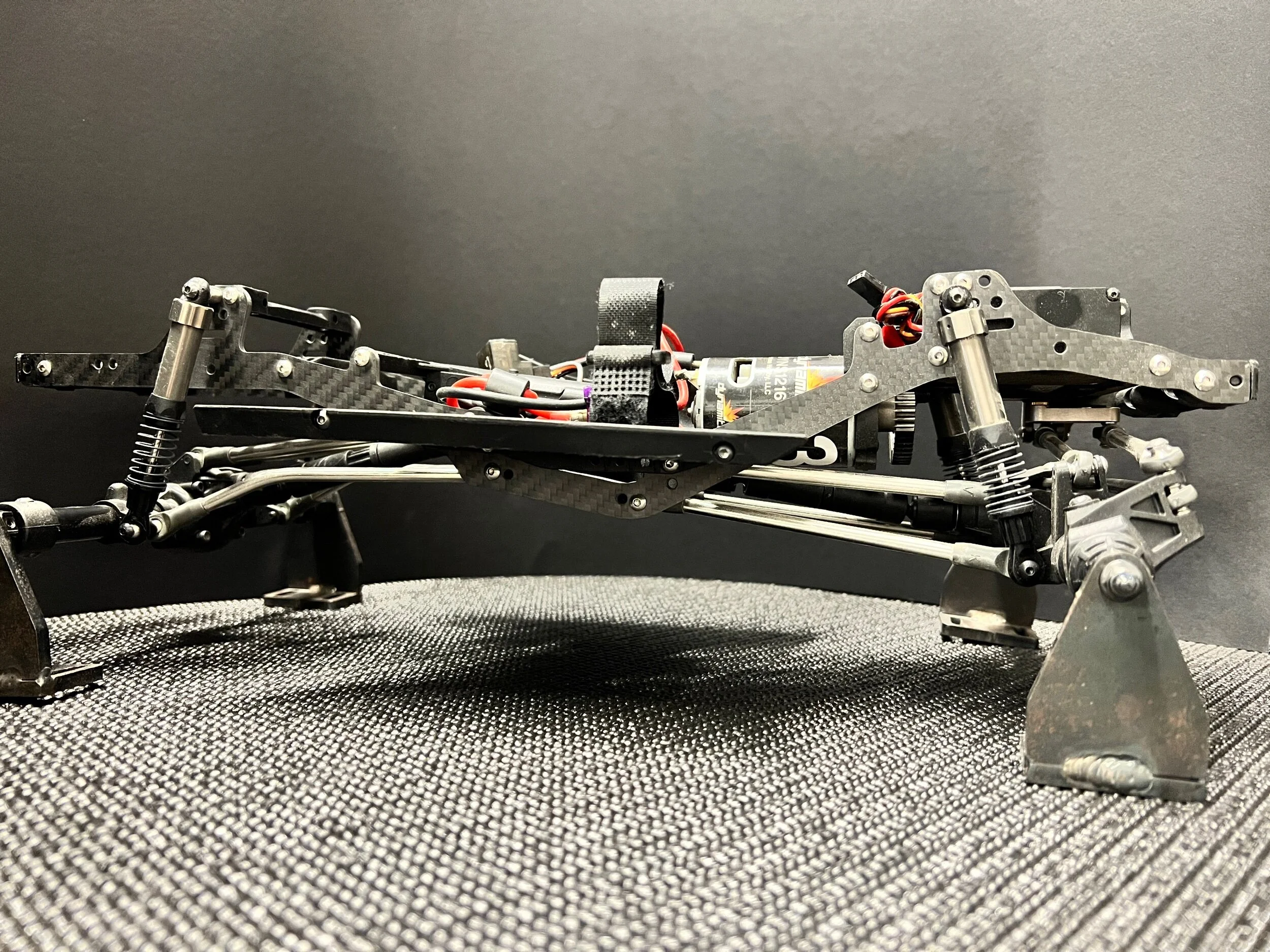

Pacesetter is our latest upgrade chassis for the SCX10 Pro platform.

This chassis is a bolt on replacement for the stock SCX10 Pro requiring no modifications to utilize. Holes in factory sliders may need lightly modified or new holes drilled all together for your specific body choice

This Chassis features a 10 Degree angle on the skid compared to the factory ~3 degree angle. This provides a greater breakover angle preventing contact at the rear of the skid area compared to stock.

The Motor mount position has also been moved down roughly 4mm bringing the motor closer to the front lower links.

Chassis is compatible with both chassis mounted servo as well as the factory axle mounted servo. To utilize axle mounted servo you will need to replace the front upper links with these Links.

Pacesetter chassis is also compatible with standard scx based flat skids allowing this design to be used with other transmission setups.

You do need to remove the two aluminum standoffs from between the transmission and forward motor mount due to skid angle and motor mount locations being different from stock. It is recommended to install a screw and nut into each hole where the standoffs were located on the transmission case to keep the case from separating.

NOTE: Some sensored brushless motors or 2 in 1 systems may have very tight tolerances between link mount hardware and transmissions or may not fit at all. Recommend brushed type motors.

Hobbywing fusion pro/SE motors do fit oracle/pacesetter chassis with factory included gearing.
