This chassis is based off of our ever popular All Time Low chassis, with some major changes.

First thing you will notice is the 6* angled skid, which helps keep the truck moving over breakovers.

The next major change is we raised the belly up just over 1/4’’ from our previous Pro chassis, again this will help on breakovers. As well as the belly being almost 1/2’’ shorter than V1

This chassis accepts Team Garage Hack forward motor mount in standard or mirrored configurations with no extra brackets required aside from an 1/8’’ spacer on the side of the motor mount for spur gear clearance between the gear and servo mount when using our shapeways dual servo mount. Motor mount holes are slotted for adjustment if desired.

OPTION PARTS:

CMS

skid plate

TRX Conversion skid

Aluminum Chassis Spacers

Suspension Links

TRX4 Conversion links

Aluminum Panhard Mount

Body Mount/Sliders

NOTES:

Prop shaft lengths:

TGH forward motor mount to transfer case standard orientation: 73mm pin to pin

TGH forward motor mount to transfer case mirrored orientation: 60mm pin to pin

TGH forward motor mount to creeper-t

TGH mirrored forward motor mount to mirrored creeper-t 58mm

we recommend use of 65-75mm prop shafts. When using TGH setup in mirrored config, you will need to shorten the prop shaft by approximately 6mm on each part. this can be done on a small grinder, belt sander, or with a dremel.

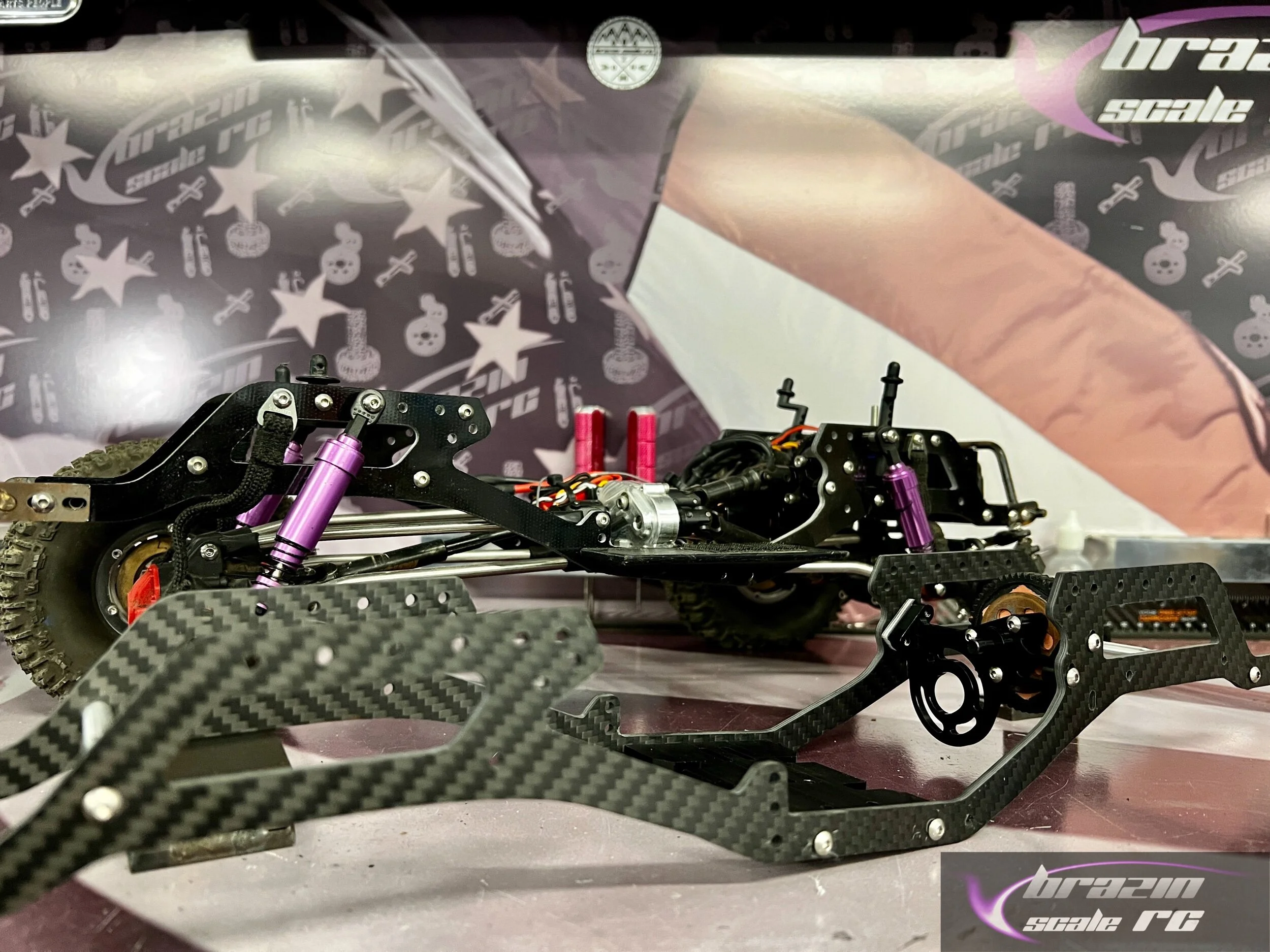

Photos shown with optional components which are not included in this sale. Rails only in this listing.
